Branchoria UFOs and UAP by Country UFOs and UAP by Country

Compare sightings, records, and explanations across UN member countries.

Within Mexico UFO Files

Were the Campeche UFOs Really Oil Flares?

The 2004 Air Force video looked extraordinary, but camera geometry and offshore heat sources offer a detailed conventional explanation.

24 sources 3 graphics

On this page

  • What the Air Force crew recorded
  • How infrared cameras changed the scene
  • Why the oil flare explanation fits
Preview for Were the Campeche UFOs Really Oil Flares?

Introduction

The 5 March 2004 Campeche incident remains Mexico’s best-known military UFO case because it involved authenticated infrared footage recorded during an anti-drug patrol by a Mexican Air Force Merlin C-26A aircraft. The video appeared extraordinary: bright heat sources seemed to surround the aircraft while crew members reported an unusual encounter. Yet the strongest evidence accumulated since the footage became public points towards a conventional explanation. Rather than unknown craft, the infrared camera was most likely detecting the intense gas flares from offshore oil installations in the Cantarell petroleum complex, with aircraft movement and camera geometry creating the illusion of fast-moving aerial objects. Although some witnesses remain unconvinced, the case has become an important lesson in how military-grade sensors can produce compelling but misleading imagery when their limitations are misunderstood.[UAP Codex]uapcodex.orgcampeche fam 2004UAP CodexCampeche 2004: el infrarrojo militar mexicano y las flamas de Cantarell…

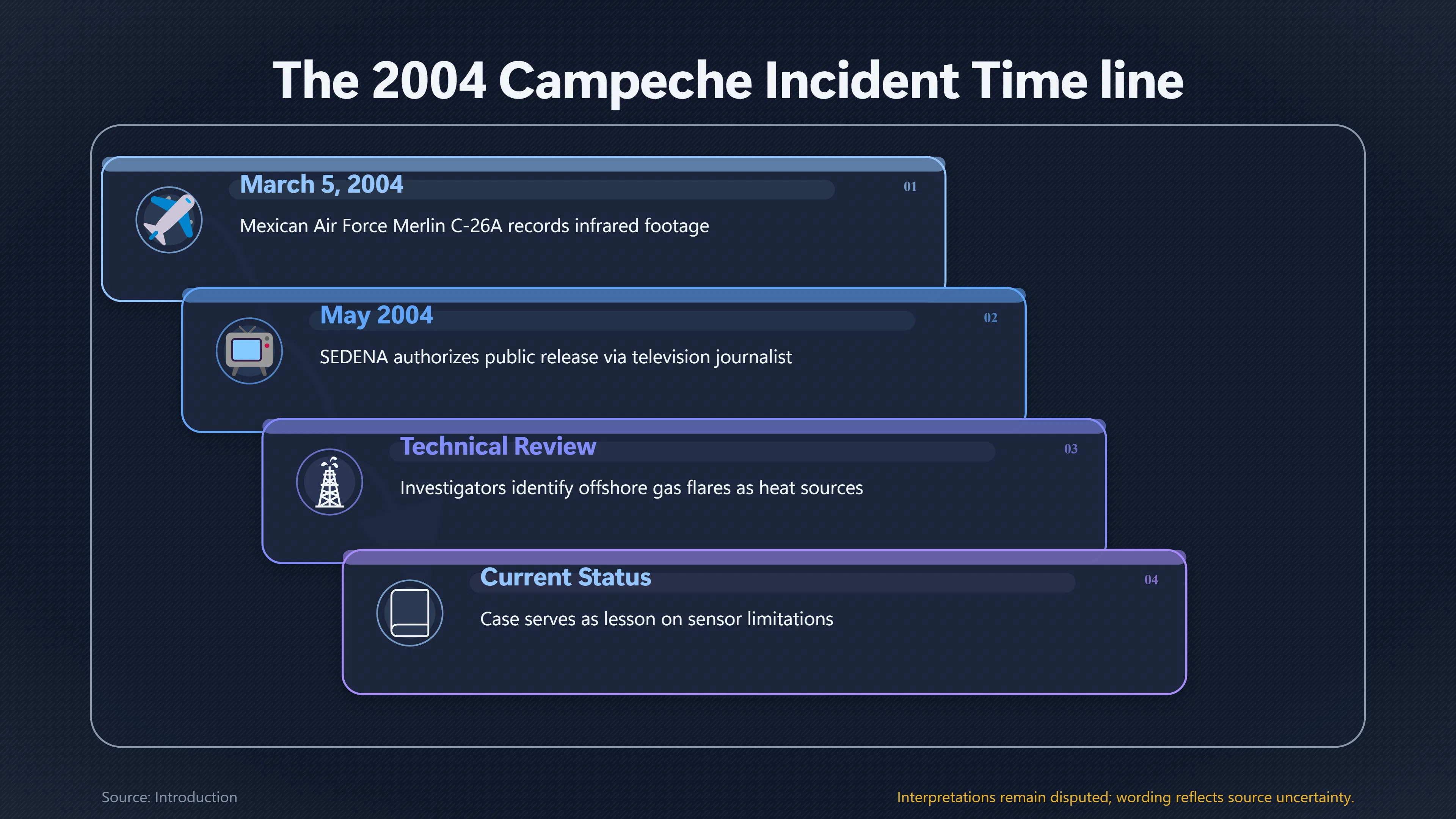

Campeche illustration 1

What the Air Force crew recorded

The incident occurred during a routine surveillance mission over the southern Gulf of Mexico near Campeche. The aircraft was equipped with a Star SAFIRE II forward-looking infrared (FLIR) imaging system as part of a counter-narcotics operation.

According to the flight crew:

  • The infrared camera detected multiple bright heat sources, at one stage numbering up to eleven.
  • Some of the returns were reportedly associated with radar contacts, although not every infrared source appeared on radar.
  • The objects were not visible to the crew with the naked eye.
  • Operators believed the lights were manoeuvring around or following the aircraft.
  • Several crew members later described feeling surrounded by the objects.[UAP Codex]uapcodex.orgcampeche fam 2004UAP CodexCampeche 2004: el infrarrojo militar mexicano y las flamas de Cantarell…

The footage became internationally famous after Mexico’s Secretariat of National Defence (SEDENA) authorised its public release through television journalist Jaime Maussan in May 2004. Because the recording originated from an official military platform rather than civilian witnesses, it received unusually wide attention both within Mexico and internationally.[UFO Transparency]ufotransparency.comUFO Transparency SEDENA Campeche FLIR Footage,UFO TransparencySEDENA Campeche FLIR Footage, March 5, 2004 Mexican Air Force Recording, SEDENA (Secretaría de la Defensa Nacional) / Fue…Published: March 5, 2004

How infrared cameras changed the scene

Understanding the case requires understanding what the aircraft’s sensor was actually recording.

The camera was not filming ordinary visible light. It was imaging infrared radiation—the heat emitted by objects. A very hot source can therefore appear as an extremely bright point even when nothing unusual is visible through the cockpit windows.

This distinction matters because infrared imagery compresses three-dimensional scenes into a two-dimensional display. Without independent range information, distant stationary heat sources can appear deceptively similar to nearby airborne objects.

Several features of the Campeche recording fit this behaviour:

  • the brightest objects were only obvious in infrared;
  • their apparent size reflected thermal intensity rather than physical dimensions;
  • the camera operator had limited depth perception from the sensor display alone;
  • aircraft motion continually altered the apparent position of distant heat sources against one another.[UAP Codex]uapcodex.orgcampeche fam 2004UAP CodexCampeche 2004: el infrarrojo militar mexicano y las flamas de Cantarell…

The result was a video that looked far more dramatic than the underlying geometry probably was.

31:54

6 UFO GOVERNMENT COVER-UPS | The Proof Is Out There | History

Channel: HISTORY · Views: 3.4M · Uploaded: November 2022 · Length: 31 minutes

Open on YouTube

Why the oil-flare explanation fits

The leading conventional explanation identifies the infrared targets as gas flares from offshore petroleum platforms in the Cantarell oil field, one of the world’s largest offshore oil-producing regions.

Oil production commonly involves burning excess natural gas through elevated flare stacks. These flames are extremely hot and are designed to burn continuously, making them conspicuous infrared emitters over long distances.

Investigators noted several important consistencies between the military footage and the oil-field hypothesis:

  • Location. The aircraft was operating over the Bay of Campeche, precisely where numerous offshore production platforms were located.
  • Thermal brightness. Gas flares generate infrared signatures strong enough to dominate FLIR imagery.
  • No visual confirmation. The crew did not observe luminous craft with the naked eye despite the dramatic infrared images.
  • Radar behaviour. Stationary heat sources on the sea surface would not necessarily produce radar returns comparable to airborne solid objects.
  • Relative motion. As the aircraft changed heading, fixed heat sources would appear to drift, converge or spread apart because of parallax rather than actual movement.[uapcodex.org]uapcodex.orgcampeche fam 2004UAP CodexCampeche 2004: el infrarrojo militar mexicano y las flamas de Cantarell…

Taken together, these factors explain not just one aspect of the footage but most of its unusual characteristics without requiring unknown flying vehicles.

Campeche illustration 2

The role of camera geometry and parallax

Parallax is central to understanding why experienced military personnel could sincerely interpret stationary objects as moving.

When an aircraft flies past distant fixed lights, their apparent positions shift against one another depending on the aircraft’s own movement. Through a narrow-field infrared camera with no obvious horizon or depth cues, this changing geometry can create the impression that multiple objects are:

  • pacing the aircraft,
  • changing formation,
  • crossing one another,
  • or surrounding the observer.

Importantly, none of those apparent motions requires the heat sources themselves to move.

Analyses of the aircraft’s heading, the camera’s viewing angles and the location of offshore platforms showed that the apparent object movements closely matched what would be expected if the sensor were repeatedly tracking fixed oil-flare locations while the aircraft altered course.[UAP Codex]uapcodex.orgcampeche fam 2004UAP CodexCampeche 2004: el infrarrojo militar mexicano y las flamas de Cantarell…

3:13

Leaked UFO Military footage: Mexican Air Force Chasing Alien Sighting Leaked Video in Mexico

Channel: Modi Elnadi · Views: 136.3K · Uploaded: June 2006 · Length: 3 minutes 13 seconds

Open on YouTube

Why the case is still debated

The oil-flare explanation is widely regarded by sceptical investigators as the best fit for the available evidence, but it has not persuaded everyone.

Supporters of the original UFO interpretation point to several unresolved issues:

  • some crew members believed the apparent motions were too rapid for stationary sources;
  • reports differed regarding which targets appeared on radar;
  • the complete military telemetry and sensor data have never been released publicly, limiting independent reconstruction of every aspect of the encounter.[UAP Codex]uapcodex.orgcampeche fam 2004UAP CodexCampeche 2004: el infrarrojo militar mexicano y las flamas de Cantarell…

These uncertainties prevent the case from being reconstructed with absolute precision.

However, uncertainty is not the same as evidence for extraordinary craft. Most independent technical reviews conclude that the conventional explanation accounts for substantially more of the available observations than alternative hypotheses.[Skeptical Inquirer]skepticalinquirer.orgOpen source on skepticalinquirer.org.

Campeche illustration 3

What the Campeche case demonstrates

Within Mexico’s broader UFO history, the Campeche incident is significant not because it provides convincing evidence of extraterrestrial vehicles, but because it illustrates how authentic military sensor data can still produce misleading impressions.

Several important lessons emerge:

  • Official footage is not automatically self-explanatory. Genuine military recordings still require technical interpretation.
  • Infrared sensors detect heat, not object identity. Bright thermal sources can easily be mistaken for unusual aircraft.
  • Human perception remains vulnerable. Experienced crews can sincerely misinterpret complex sensor displays under operational conditions.
  • Multiple data sources matter. Infrared imagery alone is rarely sufficient to determine the nature or distance of a target.

For these reasons, the Campeche recording is now frequently cited in discussions of unidentified aerial phenomena as an example of why sensor interpretation, environmental context and aircraft geometry are often more informative than the dramatic appearance of the video itself. Rather than weakening the case’s historical importance, this makes it one of Mexico’s most valuable examples of how extraordinary-looking military footage can ultimately have an ordinary, technically plausible explanation.[uapcodex.org]uapcodex.orgcampeche fam 2004UAP CodexCampeche 2004: el infrarrojo militar mexicano y las flamas de Cantarell…

12:00

Unexplained Signs Of Alien Life Scientists Discovered In Mexico

Channel: MostAmazingTop10 · Views: 7.4K · Uploaded: April 2025 · Length: 12 minutes

Open on YouTube
